    Cognitive Artificial Intelligence


Cloud Vendor Based NoOps

Use Cases


Detect Labels
Detect Faces
Track Person


AWS (Amazon Web Services)


Amazon Rekognition

Prerequisites are to have a valid and activated AWS account and permissions to use "Rekognition" cognitive services
Amazon Rekognition operations can analyze videos in MPEG-4 and MOV formats encoded using H.264 codec, that are stored in Amazon S3 buckets
"The maximum file size for a stored video is 8GB (2019)"
recommendations-camera-stored-streaming-video


Basic Setup

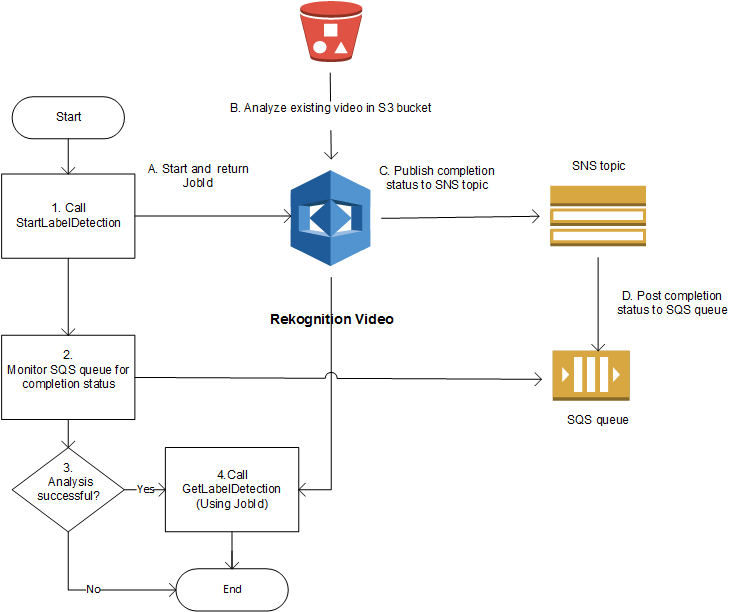

"You start detecting labels in a video by calling start-label-detection. When Amazon Rekognition finishes analyzing the video, the completion status is sent to the Amazon SNS topic that's specified in the --notification-channel parameter of start-label-detection. You can get the completion status by subscribing an Amazon Simple Queue Service (Amazon SQS) queue to the Amazon SNS topic. You then poll receive-message to get the completion status from the Amazon SQS queue."


Prepare to configure AWS CLI

NB. Do not use the AWS account root user access key. The access key for the AWS account root user gives full access to all resources for all AWS services, including billing information. The permissions cannot be reduce for the AWS account root user access key.

Create a GROUP in the Console, such as cognitive, and assign AmazonRekognitionFullAccess and AmazonS3FullAccess as Policy create-admin-group

NB. Here also using AmazonSNSFullAccess for SNS  and AmazonSQSFullAccess for SQS and IAMFullAccess for IAM


Create a USER in the Console, such as aiuser, assign it to the GROUP, and save the credentials.csv file (store and keep it secret) create-admin-user
Set a PASSWORD for the user aws-password


Run the aws configure command to configure the AWS CLI using the keys for the USER (aiuser)

NB. The command prompts for: access key, secret access key, AWS Region, and output format; stores this in a profile ("default"), this is used when running  an AWS CLI command without explicitly specify another profile.
$ aws configure list
      Name                    Value             Type    Location
      ----                    -----             ----    --------
   profile                <not set>             None    None
access_key     ****************MYVZ shared-credentials-file
secret_key     ****************nEac shared-credentials-file
    region                <not set>             None    None


Create an S3 Bucket and copy files to it

Create an S3 Bucket using aws s3 naming the bucket blobbucket

$ aws s3 mb s3://blobbucket --region us-east-2
make_bucket: blobbucket


Create an S3 Bucket using aws s3api naming the bucket blobbucket set to private, with LocationConstraint set to the specified region

$ aws s3api create-bucket --bucket blobbucket --acl private --region us-east-2 --create-bucket-configuration LocationConstraint=us-east-2
http://blobbucket.s3.amazonaws.com/


Upload files to the S3 Bucket (s3 and s3api commands; single file or recursive on directory)

$ aws s3 cp data/15fps-surveillance-video.mp4 s3://blobbucket/
upload: data/15fps-surveillance-video.mp4 to s3://blobbucket/15fps-surveillance-video.mp4

$ aws s3api put-object --bucket blobbucket --key t15fps-surveillance-video.mp4 --body ./data/15fps-surveillance-video.mp4 --acl private

$ aws s3 cp --recursive ./data/ s3://blobbucket/


List objects (files) in the S3 Bucket  (s3 and s3api commands)

$ aws s3 ls s3://blobbucket

$ aws s3api list-objects --bucket blobbucket --query 'Contents[].{Key: Key}' | jq -r '.[].Key'


Trying to access this bucket over HTTP without authenticating is denied

<Error>
      <Code>AccessDenied</Code>
      <Message>Access Denied</Message>
      <RequestId>090832BE4B92F4DC</RequestId>
   <HostId>
      27Ec+Sx6rPwGJFpWIQ4ktZrdlG5m710m+yUKjXJ9IfWE3GWXde6e2OdaY0OdKnV6Y3NEUSOI4iw=
   </HostId>
</Error>


Setup for Rekognition video processing


video-cli-commands
Evaluate video recommendations-video

Codec (h.264 encoded)
Frame rate (recommended frame rate is 30 fps, and not less than 5 fps)
Encoder bitrate (recommended encoder bitrate is 3 Mbps, and not less than 1.5 Mbps)
Frame Rate vs. Frame Resolution (such as for better face search results, favoring a higher frame resolution over a higher frame rate)


Setup Process


Create an SNS topic to receive notifications from Rekognition

SNS > Topics


Create a Standard SQS queue to recieve messages from Amazon SNS

SQS > Create Queue


Subscribe the SQS queue to the Amazon SNS topic

SQS > Queue Actions > Subscribe Queue to SNS Topic > Choose a Topic


Grant permission to the SNS topic to send messages to the SQS queue

SQS > Select the queue > Add Permissions >
Effect: Allow
Principal: Everybody (*)
Actions drop-down: SendMessage
Add Conditions
   Condition: ArnEquals
   Key: aws:SourceArn
   Value: the SNS Topic ARN


Create the IAM Policy to allow Rekognition to publish the completion status on SNS

IAM > Policies > Create Policy > Add JSON
{
  "Version": "2012-10-17",
  "Statement": [
     {
       "Effect": "Allow",
       "Action": [ "sns:Publish" ],
       "Resource": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo"
     }
  ]
}


Create the IAM Role

IAM > Roles > Choose the service > Rekognition > AmazonRekognitionServiceRole


Test the SNS to SQS connection by sending a message to the SNS topic for the SQS subscriber

Send test message

SNS > Topics > select topic > Publish message > type and publish message


Receive the test message
$ aws sqs receive-message --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --region us-east-1 | tee test-message.json
{
    "Messages": [
        {
            "MessageId": "88ab70a8-63cf-425e-a276-8d1bc2f09d97",
            "ReceiptHandle": "AQEBFEcyFAXJiTVdLDVtiQMtwc5TuHtwHyHjEpmZ0ux434rtrp6lrc77HzggfSzk4Eq34W45Nxuvjz478Q7zNCNMSzkjmelSDuIMcPqcV85L+f5Gh6Ty3B3ga6QYNFocBjAAECVHhjgAl1U+HHhNHuPnE94h2jurKcXc86m5dgyUvdVncl3O/oJCQ4mp8okmqJKRjbmX5+r4pE6JVwRHpdEo6zti1SeEw8WplgA+e7YM7ojQEC+4rVAyKAla/Fy/k68Wxc3r7jx2kokWaajubWBOam2QYB0Zqr2m7aNt4KVp5uz2zEqWW/MCBDmeirXseZ7TOuD8KmjPzabudhlIOV1hoowFMa4TIpNCpCLUPvJKvJzOExBYaHZNIZyMdtCTb0SJt95p/7NTuBs5teh6yCz+lQ==",
            "MD5OfBody": "da44c816125c2d5583b649719858556a",
            "Body": "{\n  \"Type\" : \"Notification\",\n  \"MessageId\" : \"33807e86-7880-55c1-b183-289900bcd25b\",\n  \"TopicArn\" : \"arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo\",\n  \"Message\" : \"bunga bunga\",\n  \"Timestamp\" : \"2019-10-15T07:32:12.475Z\",\n  \"SignatureVersion\" : \"1\",\n  \"Signature\" : \"riP4YsOb9PT8AgtCIOXBiseaP4WeTzO6DSAk2JwP9+nDNnOoWXBGFREuYy6H2yKOTELIj6wissenm9nb9O/QRuBmQwyfRkEQUK1lhQipRmoYIbmeZjYMiynBUq9Kq5DOoH8TMmbLogUJwswDaigq33DG28Y6H4Bqt/j2V9KgxQr2gjS5Q8z1xVw/QCeam3Q1Lzii1wAm+fX8TXPl8ZrnBNMiEbNdyZzSgFHlAwj/BLbLK+WmPwxp/3Jtlxfg1Qy5paZKqzTSoeegBryJMWUWrhNPyQsz96uMSH0ZIrEY7sGiaVfeUZPmBGOKh0Vd5AH8z2V/TXRvKWier43uqa4G4A==\",\n  \"SigningCertURL\" : \"https://sns.us-east-1.amazonaws.com/SimpleNotificationService-6aad65c2f9911b05cd53efda11f913f9.pem\",\n  \"UnsubscribeURL\" : \"https://sns.us-east-1.amazonaws.com/?Action=Unsubscribe&SubscriptionArn=arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo:af2afca1-b93b-44d2-b69b-79983ba1fa5b\"\n}"
        }
    ]
}


Parse the test message JSON
$ jq -r '.Messages[].Body' test-message.json|jq -r '"\(.MessageId) \(.Timestamp) MESSAGE:\"\(.Message)\""'
33807e86-7880-55c1-b183-289900bcd25b 2019-10-15T07:32:12.475Z MESSAGE:"bunga bunga"


Setup Configuration Overview


Amazon SNS > Topics
Name: RekognitionVideo
ARN: arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo


Amazon SQS > Create Queue
Name: RekognitionVideo
Queue Type: Standard
URL: https://sqs.us-east-1.amazonaws.com/deadbeeef7898/RekognitionVideo
ARN: arn:aws:sqs:us-east-1:deadbeeef7898:RekognitionVideo
Subscribe SNS Topic: RekognitionVideo
Subscribe SNS ARN: arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo
Permission subscribing on SNS:
   Effect	Principals	Actions	         Conditions
   Allow	Everybody (*)   SQS:SendMessage  ArnEquals - aws:SourceArn: "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo"
Permission subscribing on SNS JSON:
   { "Version": "2012-10-17", "Id": "arn:aws:sqs:us-east-1:deadbeeef7898:RekognitionVideo/SQSDefaultPolicy", "Statement": [ { "Sid": "Sid1571039537626", "Effect": "Allow", "Principal": { "AWS": "*" }, "Action": "SQS:SendMessage", "Resource": "arn:aws:sqs:us-east-1:deadbeeef7898:RekognitionVideo", "Condition": { "ArnEquals": { "aws:SourceArn": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo" } } } ] }


IAM > Roles > Rekognition > AmazonRekognitionServiceRole
Name: RekognitionVideo
AWS service: rekognition.amazonaws.com
ARN: arn:aws:iam::deadbeeef7898:role/RekognitionVideo


IAM > Policy
Name: RekognitionVideo
ARN: arn:aws:iam::deadbeeef7898:policy/RekognitionVideo
Permission to publish on SNS:
JSON: { "Version": "2012-10-17", "Statement": [ { "Effect": "Allow", "Action": [ "sns:Publish" ], "Resource": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo" } ] }


Setup Configuration Review


SQS Queue
$ aws sqs list-queues --region us-east-1
{
    "QueueUrls": [
        "https://queue.amazonaws.com/deadbeeef7898/RekognitionVideo"
    ]
}


SQS Queue Policy
$ aws sqs get-queue-attributes --region us-east-1 --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --attribute-names Policy|jq -r '.Attributes.Policy'|jq .
{
  "Version": "2012-10-17",
  "Id": "arn:aws:sqs:us-east-1:deadbeef7898:RekognitionVideo/SQSDefaultPolicy",
  "Statement": [
    {
      "Sid": "Sid1571039537626",
      "Effect": "Allow",
      "Principal": {
        "AWS": "*"
      },
      "Action": "SQS:SendMessage",
      "Resource": "arn:aws:sqs:us-east-1:deadbeef7898:RekognitionVideo",
      "Condition": {
        "ArnEquals": {
          "aws:SourceArn": "arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo"
        }
      }
    }
  ]
}


SNS Topic
$ aws sns list-topics --region us-east-1
{
    "Topics": [
        {
            "TopicArn": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo"
        }
    ]
}


SNS Subscription
$ aws sns list-subscriptions --region us-east-1
{
    "Subscriptions": [
        {
            "SubscriptionArn": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo:af2afca1-b93b-44d2-b69b-79983ba1fa5b",
            "Owner": "deadbeeef7898",
            "Protocol": "sqs",
            "Endpoint": "arn:aws:sqs:us-east-1:deadbeeef7898:RekognitionVideo",
            "TopicArn": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo"
        }
    ]
}


IAM Role
$ aws iam list-roles | jq '.Roles[]|select(.RoleName=="RekognitionVideo")'
{
  "Path": "/",
  "RoleName": "RekognitionVideo",
  "RoleId": "AROAYWZGLN25MDYHHZ7WE",
  "Arn": "arn:aws:iam::deadbeeef7898:role/RekognitionVideo",
  "CreateDate": "2019-10-14T07:10:15Z",
  "AssumeRolePolicyDocument": {
    "Version": "2012-10-17",
    "Statement": [
      {
        "Effect": "Allow",
        "Principal": {
          "Service": "rekognition.amazonaws.com"
        },
        "Action": "sts:AssumeRole",
        "Condition": {}
      }
    ]
  },
  "Description": "Allows Rekognition to call AWS services on your behalf.",
  "MaxSessionDuration": 3600
}


IAM Policy
$ aws iam list-policies| jq '.Policies[]|select(.PolicyName=="RekognitionVideo")'
{
  "PolicyName": "RekognitionVideo",
  "PolicyId": "ANPAYWZGLN25IY67HU6CW",
  "Arn": "arn:aws:iam::deadbeef7898:policy/RekognitionVideo",
  "Path": "/",
  "DefaultVersionId": "v1",
  "AttachmentCount": 0,
  "PermissionsBoundaryUsageCount": 0,
  "IsAttachable": true,
  "CreateDate": "2019-10-14T07:20:44Z",
  "UpdateDate": "2019-10-14T07:20:44Z"
}


Detect Labels


detecting-labels


Upload the video to be analyzed to S3 Bucket, create the bucket if needed
$ aws s3 mb s3://blobbucket-us-east-1/ --region us-east-1
make_bucket: blobbucket-us-east-1

$ aws s3 cp data/15fps-surveillance-video.mp4  s3://blobbucket-us-east-1
upload: data/15fps-surveillance-video.mp4 to s3://blobbucket-us-east-1/15fps-surveillance-video.mp4


Start the video analysis request with aws rekognition start-label-detection
$ aws rekognition start-label-detection --video '{"S3Object":{"Bucket":"blobbucket-us-east-1","Name":"15fps-surveillance-video.mp4"}}' --notification-channel '{"SNSTopicArn":"arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo","RoleArn":"arn:aws:iam::deadbeeef7898:role/RekognitionVideo"}' --region us-east-1
{
    "JobId": "7964e89e7bcf6c13205552ebb6564b06deadbeeefaa811beda0fc3a6ce2b336fa"
}


Get the completion status from the Amazon SQS queue with aws sqs receive-message
$ aws sqs receive-message --queue-url https://sqs.us-east-1.amazonaws.com/deadbeeef7898/RekognitionVideo --region us-east-1 | tee result-status.json
{
    "Messages": [
        {
            "MessageId": "ec3211dc-3f7b-4885-a49e-4c383d94a3cd",
            "ReceiptHandle": "AQEBE/S2Onn/rQrrycJhS9oanKiDf5SQHrsk0HcA5RiHS4IsucBGOQoINYusmLRNUpZL51WMo7BmYbD92AvXPZ/B4QAVt2+pYGxWvRiwsUnbVvPvTlTnnQ0VxDGQD5+P/1xRnEp0ghBdGSE83rzDT8bTK2Nhi220o20wZjrU3ORXA69JUty9othNLJIJ3g/piE4Ebf1tYQNO+A9naPoIYYedbnRVtXEK5KqJFjcMtvh2U5N7cTDNOXcYtzJ9QuXFugTo4lwSQsH5xFCbaER5Sb5WQgt8eLqs629ohJpru5NiF45TVa9SXvoNIcEdvfxyAENra8SYyn+9Xxwx4NIKs8ZAhK3YwQT82p2ER84ncH1VT9Kpkrn80v/ZZr/aGZfw0KwmusOye/5pgv6SB7maPQ+BbQ==",
            "MD5OfBody": "3442806b4e240da211091700a48216ef",
            "Body": "{\n  \"Type\" : \"Notification\",\n  \"MessageId\" : \"de3dc304-57e4-546c-a947-951a6456ab86\",\n  \"TopicArn\" : \"arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo\",\n  \"Message\" : \"{\\\"JobId\\\":\\\"7964e89e7bcf6c13205552ebb6564b06deadbeeefaa811beda0fc3a6ce2b336fa\\\",\\\"Status\\\":\\\"SUCCEEDED\\\",\\\"API\\\":\\\"StartLabelDetection\\\",\\\"Timestamp\\\":1571041650362,\\\"Video\\\":{\\\"S3ObjectName\\\":\\\"15fps-surveillance-video.mp4\\\",\\\"S3Bucket\\\":\\\"blobbucket-us-east-1\\\"}}\",\n  \"Timestamp\" : \"2019-10-14T08:27:30.458Z\",\n  \"SignatureVersion\" : \"1\",\n  \"Signature\" : \"nApZMv3+NZjoO0ld79BMsmR+YV44VK69Kg39KZj2JxUYXWN+rlyZnlMiwiz/o6Gge2bNgFL6Ome0/qRvGZonKW9MfxScYkl6ZW50AElxoXoZP5cR++yJ340MucFRK+fdjNlqoXemmfUt3S5Q5n9p3JUViPt4k/rZmyFSwE751FJeQp/b1xK/fsd4hAoraQ5pwSvoagUBLihMqAkCyRVDhwbNY1FwjOgjK3SxpH5PF4KLhMO3XcniqOI0RxYYBrXPmWOy9G2gObepl/vqt1xVYEPWUud6aqM3ERmNTqn7q6LYioIjx6koWbXWdpIgjK6oI3cwoZkiNU1jx3DVKUC32w==\",\n  \"SigningCertURL\" : \"https://sns.us-east-1.amazonaws.com/SimpleNotificationService-6aad65c2f9911b05cd53efda11f913f9.pem\",\n  \"UnsubscribeURL\" : \"https://sns.us-east-1.amazonaws.com/?Action=Unsubscribe&SubscriptionArn=arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo:af2afca1-b93b-44d2-b69b-79983ba1fa5b\"\n}"
        }
    ]
}

$ jq -r '.Messages[].Body' result-status.json
{
  "Type": "Notification",
  "MessageId": "de3dc304-57e4-546c-a947-951a6456ab86",
  "TopicArn": "arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo",
  "Message": "{\"JobId\":\"7964e89e7bcf6c13205552ebb6564b06deadbeeefaa811beda0fc3a6ce2b336fa\",\"Status\":\"SUCCEEDED\",\"API\":\"StartLabelDetection\",\"Timestamp\":1571041650362,\"Video\":{\"S3ObjectName\":\"15fps-surveillance-video.mp4\",\"S3Bucket\":\"blobbucket-us-east-1\"}}",
  "Timestamp": "2019-10-14T08:27:30.458Z",
  "SignatureVersion": "1",
  "Signature": "nApZMv3+NZjoO0ld79BMsmR+YV44VK69Kg39KZj2JxUYXWN+rlyZnlMiwiz/o6Gge2bNgFL6Ome0/qRvGZonKW9MfxScYkl6ZW50AElxoXoZP5cR++yJ340MucFRK+fdjNlqoXemmfUt3S5Q5n9p3JUViPt4k/rZmyFSwE751FJeQp/b1xK/fsd4hAoraQ5pwSvoagUBLihMqAkCyRVDhwbNY1FwjOgjK3SxpH5PF4KLhMO3XcniqOI0RxYYBrXPmWOy9G2gObepl/vqt1xVYEPWUud6aqM3ERmNTqn7q6LYioIjx6koWbXWdpIgjK6oI3cwoZkiNU1jx3DVKUC32w==",
  "SigningCertURL": "https://sns.us-east-1.amazonaws.com/SimpleNotificationService-6aad65c2f9911b05cd53efda11f913f9.pem",
  "UnsubscribeURL": "https://sns.us-east-1.amazonaws.com/?Action=Unsubscribe&SubscriptionArn=arn:aws:sns:us-east-1:deadbeeef7898:RekognitionVideo:af2afca1-b93b-44d2-b69b-79983ba1fa5b"
}

$ jq -r '.Messages[0].Body' result-status.json|jq -r '.Message'|jq '.'
{
  "JobId": "7964e89e7bcf6c13205552ebb6564b06deadbeeefaa811beda0fc3a6ce2b336fa",
  "Status": "SUCCEEDED",
  "API": "StartLabelDetection",
  "Timestamp": 1571041650362,
  "Video": {
    "S3ObjectName": "15fps-surveillance-video.mp4",
    "S3Bucket": "blobbucket-us-east-1"
  }
}


Get the video analysis results with aws rekognition get-label-detection
$ aws rekognition get-label-detection --job-id "7964e89e7bcf6c13205552ebb6564b06deadbeeefaa811beda0fc3a6ce2b336fa" --region us-east-1 >result-label-detection.json


Review the analsysis metadata information about the video file
$ jq -r '.JobStatus,.VideoMetadata' result-label-detection.json
SUCCEEDED
{
  "Codec": "h264",
  "DurationMillis": 21656,
  "Format": "QuickTime / MOV",
  "FrameRate": 29.9689998626709,
  "FrameHeight": 240,
  "FrameWidth": 320
}


Review the analsysis information about the video file, in this case label names tagged as "Person"
$ jq -r '.Labels[]|select(.Label.Name=="Person")|"\(.Timestamp) \(.Label.Confidence|tonumber) \(.Label.Instances)"' result-label-detection.json|awk '{printf "Frame: %s Confidence: %.2f Box: %s\n", $1, $2,$3}'
Frame: 967 Confidence: 58.26 Box: [{"BoundingBox":{"Width":0.041670799255371094,"Height":0.1896933913230896,"Left":0.952782928943634,"Top":0.3357686996459961},"Confidence":63.67138671875}]
Frame: 1468 Confidence: 92.70 Box: [{"BoundingBox":{"Width":0.08079147338867188,"Height":0.23073521256446838,"Left":0.9086510539054871,"Top":0.3004027009010315},"Confidence":99.84532928466797}]
Frame: 1968 Confidence: 99.73 Box: [{"BoundingBox":{"Width":0.06082210689783096,"Height":0.2385426163673401,"Left":0.871123194694519,"Top":0.28691354393959045},"Confidence":99.72191619873047}]
<...removed...>
Frame: 10477 Confidence: 94.11 Box: [{"BoundingBox":{"Width":0.11091585457324982,"Height":0.2167797088623047,"Left":0.570489227771759,"Top":0.2526220977306366},"Confidence":95.37702941894531}]
Frame: 10978 Confidence: 97.76 Box: [{"BoundingBox":{"Width":0.11687908321619034,"Height":0.21114571392536163,"Left":0.6746412515640259,"Top":0.274556428194046},"Confidence":98.29331970214844}]
Frame: 11478 Confidence: 79.05 Box: [{"BoundingBox":{"Width":0.07418155670166016,"Height":0.22305838763713837,"Left":0.8415846824645996,"Top":0.29771655797958374},"Confidence":98.47969055175781}]


Detect Faces


detecting-faces


Start the video analysis request with aws rekognition start-face-detection (optional --attributes "ALL")
$ aws rekognition start-face-detection --video '{"S3Object":{"Bucket":"blobbucket-us-east-1","Name":"15fps-surveillance-video.mp4"}}' --notification-channel '{"SNSTopicArn":"arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo","RoleArn":"arn:aws:iam::deadbeef7898:role/RekognitionVideo"}' --region us-east-1
{
    "JobId": "7ff36fb709f061b4b580eb483ac6d17c9c882cf9df240b70ca312be2d2bdc7e5"
}


Check number of available message in the SQS queue
$ aws sqs get-queue-attributes --region us-east-1 --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --attribute-names ApproximateNumberOfMessages
{
    "Attributes": {
        "ApproximateNumberOfMessages": "1"
    }
}


Retrieve the video analysis results with aws rekognition get-face-detection
$ aws rekognition get-face-detection --job-id "7ff36fb709f061b4b580eb483ac6d17c9c882cf9df240b70ca312be2d2bdc7e5" --region us-east-1 >result-face-detection.json


Reveiw the video analysis results

Review the analsysis metadata information about the video file

$ jq -r '.JobStatus,.VideoMetadata' result-face-detection.json
SUCCEEDED
{
  "Codec": "h264",
  "DurationMillis": 21656,
  "Format": "QuickTime / MOV",
  "FrameRate": 29.9689998626709,
  "FrameHeight": 240,
  "FrameWidth": 320
}


Review the analsysis information about the video file, in this case no faces were detected

$ jq -r '.Faces' result-face-detection.json
[]


Download another video file, upload the video to be analyzed to S3 Bucket
$ wget -q https://github.com/intel-iot-devkit/sample-videos/blob/master/face-demographics-walking.mp4?raw=true --output-document face-demographics-walking.mp4

$ aws s3 cp face-demographics-walking.mp4 s3://blobbucket-us-east-1
upload: face-demographics-walking.mp4 to s3://blobbucket-us-east-1/face-demographics-walking.mp4


Start the video analysis request with aws rekognition start-label-detection
$ aws rekognition start-face-detection --video '{"S3Object":{"Bucket":"blobbucket-us-east-1","Name":"face-demographics-walking.mp4"}}' --notification-channel '{"SNSTopicArn":"arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo","RoleArn":"arn:aws:iam::deadbeef7898:role/RekognitionVideo"}' --region us-east-1
{
    "JobId": "2cb63de78f4548c47eb6c3c66100882e5b3f222c93eecce0b52d20048a5fa5a6"
}


Retrieve the video analysis results with aws rekognition get-face-detection
$ aws rekognition get-face-detection --job-id "2cb63de78f4548c47eb6c3c66100882e5b3f222c93eecce0b52d20048a5fa5a6" --region us-east-1 > result-face-detection.json


Reveiw the video analysis results

Review the analsysis metadata information about the video file

$ jq -r '.JobStatus,.VideoMetadata' result-face-detection.json
SUCCEEDED
{
  "Codec": "h264",
  "DurationMillis": 61000,
  "Format": "QuickTime / MOV",
  "FrameRate": 12,
  "FrameHeight": 432,
  "FrameWidth": 768
}


Review the analsysis information about the video file, in this case no faces were detected

$ jq -r '.Faces[]|"\(.Timestamp) \(.Face)"'
3500 {"BoundingBox":{"Width":0.027757644653320312,"Height":0.06776954233646393,"Left":0.6440739631652832,"Top":0.41033536195755005},"Landmarks":[{"Type":"eyeLeft","X":0.6502984762191772,"Y":0.4407263398170471},{"Type":"eyeRight","X":0.6625860333442688,"Y":0.443087637424469},{"Type":"mouthLeft","X":0.6502963304519653,"Y":0.46514222025871277},{"Type":"mouthRight","X":0.6604178547859192,"Y":0.46720975637435913},{"Type":"nose","X":0.6535741686820984,"Y":0.45524677634239197}],"Pose":{"Roll":5.754757881164551,"Yaw":-14.252616882324219,"Pitch":-9.749495506286621},"Quality":{"Brightness":67.4625244140625,"Sharpness":4.3748369216918945},"Confidence":99.984375}
4000 {"BoundingBox":{"Width":0.031226634979248047,"Height":0.07277679443359375,"Left":0.5975508689880371,"Top":0.3990911543369293},"Landmarks":[{"Type":"eyeLeft","X":0.6055415272712708,"Y":0.43099138140678406},{"Type":"eyeRight","X":0.6195850968360901,"Y":0.43311625719070435},{"Type":"mouthLeft","X":0.6054181456565857,"Y":0.4574406147003174},{"Type":"mouthRight","X":0.6169991493225098,"Y":0.4592193067073822},{"Type":"nose","X":0.6105813384056091,"Y":0.44481155276298523}],"Pose":{"Roll":4.761718273162842,"Yaw":-5.82323694229126,"Pitch":-4.08699369430542},"Quality":{"Brightness":68.8060302734375,"Sharpness":5.775668621063232},"Confidence":99.99951171875}
<...removed...>
57000 {"BoundingBox":{"Width":0.08947575092315674,"Height":0.2212342917919159,"Left":0.28530335426330566,"Top":0.17665453255176544},"Landmarks":[{"Type":"eyeLeft","X":0.308383047580719,"Y":0.26193365454673767},{"Type":"eyeRight","X":0.34949177503585815,"Y":0.27033892273902893},{"Type":"mouthLeft","X":0.3062664568424225,"Y":0.3457050323486328},{"Type":"mouthRight","X":0.3399772644042969,"Y":0.35257187485694885},{"Type":"nose","X":0.3243454694747925,"Y":0.304144948720932}],"Pose":{"Roll":7.071478366851807,"Yaw":3.2929866313934326,"Pitch":6.693583011627197},"Quality":{"Brightness":64.69092559814453,"Sharpness":9.912903785705566},"Confidence":99.99991607666016}
57500 {"BoundingBox":{"Width":0.10324972867965698,"Height":0.2676992118358612,"Left":0.1456538289785385,"Top":0.11725166440010071},"Landmarks":[{"Type":"eyeLeft","X":0.15775452554225922,"Y":0.20997007191181183},{"Type":"eyeRight","X":0.2070106565952301,"Y":0.21734699606895447},{"Type":"mouthLeft","X":0.15542709827423096,"Y":0.3117433786392212},{"Type":"mouthRight","X":0.1957804262638092,"Y":0.3177231550216675},{"Type":"nose","X":0.17199307680130005,"Y":0.25771284103393555}],"Pose":{"Roll":3.58176589012146,"Yaw":-10.199628829956055,"Pitch":11.118213653564453},"Quality":{"Brightness":62.23863983154297,"Sharpness":7.589449882507324},"Confidence":99.9999771118164}


Delete the SQS messages (run it several times)
$ while [[ $(aws sqs get-queue-attributes --region us-east-1 --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --attribute-names ApproximateNumberOfMessages|jq -r '.Attributes.ApproximateNumberOfMessages') -gt 0 ]];do
   for i in $(aws sqs receive-message --max-number-of-messages 10 --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --region us-east-1 | jq -r ".Messages[].ReceiptHandle");do
      aws sqs delete-message --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --region us-east-1 --receipt-handle $i
   done
done

$ aws sqs get-queue-attributes --region us-east-1 --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --attribute-names ApproximateNumberOfMessages
{
    "Attributes": {
        "ApproximateNumberOfMessages": "0"
    }
}


Track Person


person-tracking


Upload the video to be analyzed to S3 Bucket, create the bucket if needed
$ aws s3 mb s3://blobbucket-us-east-1/ --region us-east-1
make_bucket: blobbucket-us-east-1

$ aws s3 cp data/15fps-surveillance-video.mp4  s3://blobbucket-us-east-1
upload: data/15fps-surveillance-video.mp4 to s3://blobbucket-us-east-1/15fps-surveillance-video.mp4


Start the video analysis request with aws rekognition start-person-tracking
$ aws rekognition start-person-tracking --video '{"S3Object":{"Bucket":"blobbucket-us-east-1","Name":"15fps-surveillance-video.mp4"}}' --notification-channel '{"SNSTopicArn":"arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo","RoleArn":"arn:aws:iam::deadbeef7898:role/RekognitionVideo"}' --region us-east-1
{
    "JobId": "43157b6bc2b0c73243e35eebf325a8322d06fa94b4940021fdf8f4b966a91ba4"
}


Get the completion status from the Amazon SQS queue with aws sqs receive-message
$ aws sqs receive-message --queue-url https://sqs.us-east-1.amazonaws.com/deadbeef7898/RekognitionVideo --region us-east-1 | tee result-status.json
{
    "Messages": [
        {
            "MessageId": "1b2b36f1-5ccf-4e4c-8867-6c92cbd15405",
            "ReceiptHandle": "AQEBw8jfD1z9mD5G1tJQ7mvOUTJ/zsqB/YsbdyiIWMfYtK3LX6cFzWEfwFaMjKHmU7ep5VegcJRle1JNJ/BF5rhHqd7VO3+GtF4v9uvBU2kMPu0/CQBKECk22TdR7fHD1s4GA2NbPn3gAXdhMXKT8zLKRvpy0bl3aGeJBtNAT1hVqe2gs8g97A0PWhFrJXT7Qd3kuN/SNOIMfNgE1ZgQ64bg/a2sgSgQhMt1LScwepoEiZX18otbPkEFPE/68Q3rxYKrl5TJrirg+8kWwuonb2Dn3E+Bv0MONpSMj3mPlMsDpVnNUhnVNxv0gt+/S6zuNdDVGvwiIqVsb3tNEzAkAkxjtaiZcDzvzXQbQy3agHFgTxXqBlt1jXii2vevh05b0dXlKPntdWYp0cQs/0O0bDQs2A==",
            "MD5OfBody": "e568776a38f4cb1c7040e5e013d655e6",
            "Body": "{\n  \"Type\" : \"Notification\",\n  \"MessageId\" : \"d7a7edf6-3d28-57e0-ae98-bbe99a8d37da\",\n  \"TopicArn\" : \"arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo\",\n  \"Message\" : \"{\\\"JobId\\\":\\\"43157b6bc2b0c73243e35eebf325a8322d06fa94b4940021fdf8f4b966a91ba4\\\",\\\"Status\\\":\\\"SUCCEEDED\\\",\\\"API\\\":\\\"StartPersonTracking\\\",\\\"Timestamp\\\":1571136869013,\\\"Video\\\":{\\\"S3ObjectName\\\":\\\"15fps-surveillance-video.mp4\\\",\\\"S3Bucket\\\":\\\"blobbucket-us-east-1\\\"}}\",\n  \"Timestamp\" : \"2019-10-15T10:54:29.129Z\",\n  \"SignatureVersion\" : \"1\",\n  \"Signature\" : \"MaqlmOR7UqZIsaox2BFOLX9XM0YN1nStp+srQP4DB9iSJmOyHJQkwKVFopEVV4NkI55hTmthPnfA0xW3jSXL8lPIzcxGLBIJTI5YM+/Kx7/pusGFRTb0Gv08U02V4gQ0AvW+g/LQaDpRw87a0txv5zwvyp/GDygwXF5u6kQa8GchGiozHJo7+wEwjbbXzlVnuXB7lgJQKG8nnW1VSRiO032K5OdLz9eGicP+YyrFfuHJemK9AJqI5HV7CJz5c8GG0kkv0nKHYa0InPZqWx2UsKyPLA8QRm5de8RDq6APw055Z0VyHyWwpU6SsL1boZHsiBXjs6Zu0S1XbmGIYXEbTQ==\",\n  \"SigningCertURL\" : \"https://sns.us-east-1.amazonaws.com/SimpleNotificationService-6aad65c2f9911b05cd53efda11f913f9.pem\",\n  \"UnsubscribeURL\" : \"https://sns.us-east-1.amazonaws.com/?Action=Unsubscribe&SubscriptionArn=arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo:af2afca1-b93b-44d2-b69b-79983ba1fa5b\"\n}"
        }
    ]
}

$ jq -r '.Messages[].Body' result-status.json
{
  "Type" : "Notification",
  "MessageId" : "d7a7edf6-3d28-57e0-ae98-bbe99a8d37da",
  "TopicArn" : "arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo",
  "Message" : "{\"JobId\":\"43157b6bc2b0c73243e35eebf325a8322d06fa94b4940021fdf8f4b966a91ba4\",\"Status\":\"SUCCEEDED\",\"API\":\"StartPersonTracking\",\"Timestamp\":1571136869013,\"Video\":{\"S3ObjectName\":\"15fps-surveillance-video.mp4\",\"S3Bucket\":\"blobbucket-us-east-1\"}}",
  "Timestamp" : "2019-10-15T10:54:29.129Z",
  "SignatureVersion" : "1",
  "Signature" : "MaqlmOR7UqZIsaox2BFOLX9XM0YN1nStp+srQP4DB9iSJmOyHJQkwKVFopEVV4NkI55hTmthPnfA0xW3jSXL8lPIzcxGLBIJTI5YM+/Kx7/pusGFRTb0Gv08U02V4gQ0AvW+g/LQaDpRw87a0txv5zwvyp/GDygwXF5u6kQa8GchGiozHJo7+wEwjbbXzlVnuXB7lgJQKG8nnW1VSRiO032K5OdLz9eGicP+YyrFfuHJemK9AJqI5HV7CJz5c8GG0kkv0nKHYa0InPZqWx2UsKyPLA8QRm5de8RDq6APw055Z0VyHyWwpU6SsL1boZHsiBXjs6Zu0S1XbmGIYXEbTQ==",
  "SigningCertURL" : "https://sns.us-east-1.amazonaws.com/SimpleNotificationService-6aad65c2f9911b05cd53efda11f913f9.pem",
  "UnsubscribeURL" : "https://sns.us-east-1.amazonaws.com/?Action=Unsubscribe&SubscriptionArn=arn:aws:sns:us-east-1:deadbeef7898:RekognitionVideo:af2afca1-b93b-44d2-b69b-79983ba1fa5b"
}

$ jq -r '.Messages[0].Body' result-status.json|jq -r '.Message'|jq '.'
{
  "JobId": "43157b6bc2b0c73243e35eebf325a8322d06fa94b4940021fdf8f4b966a91ba4",
  "Status": "SUCCEEDED",
  "API": "StartPersonTracking",
  "Timestamp": 1571136869013,
  "Video": {
    "S3ObjectName": "15fps-surveillance-video.mp4",
    "S3Bucket": "blobbucket-us-east-1"
  }
}


Retrieve the video analysis results with aws rekognition get-label-detection
$ aws rekognition get-person-tracking --job-id "43157b6bc2b0c73243e35eebf325a8322d06fa94b4940021fdf8f4b966a91ba4" --region us-east-1 >result-person-tracking.json


Reveiw the video analysis results

Review the analsysis metadata information about the video file

$ jq -r '.JobStatus,.VideoMetadata' result-person-tracking.json
SUCCEEDED
{
  "Codec": "h264",
  "DurationMillis": 21656,
  "Format": "QuickTime / MOV",
  "FrameRate": 29.9689998626709,
  "FrameHeight": 240,
  "FrameWidth": 320
}


Review the analsysis information about the video file

$ jq -r '.Persons[]|"\(.Timestamp) \(.Person)"' result-person-tracking.json
1301 {"Index":0,"BoundingBox":{"Width":0.078125,"Height":0.22499999403953552,"Left":0.9125000238418579,"Top":0.30000001192092896}}
1368 {"Index":0,"BoundingBox":{"Width":0.078125,"Height":0.22083333134651184,"Left":0.9125000238418579,"Top":0.30416667461395264}}
1434 {"Index":0,"BoundingBox":{"Width":0.078125,"Height":0.22083333134651184,"Left":0.9125000238418579,"Top":0.30416667461395264}}
<...removed...>
11645 {"Index":0,"BoundingBox":{"Width":0.09687499701976776,"Height":0.23333333432674408,"Left":0.887499988079071,"Top":0.30416667461395264}}
11712 {"Index":0,"BoundingBox":{"Width":0.09687499701976776,"Height":0.23333333432674408,"Left":0.887499988079071,"Top":0.30416667461395264}}
11778 {"Index":0,"BoundingBox":{"Width":0.09687499701976776,"Height":0.2291666716337204,"Left":0.887499988079071,"Top":0.3083333373069763}}
No results found
