Android Compose FPS counter with frame rate graph

AndroidFpsCounter.kt

package com.fps

import android.view.Choreographer
import androidx.compose.material3.Text
import androidx.compose.runtime.*
import androidx.compose.ui.Modifier
import androidx.compose.ui.text.font.FontStyle
import kotlin.math.roundToInt

private const val UPDATE_FPS_EVERY_MS = 60

@Composable
fun FpsCounter(modifier: Modifier = Modifier) {
    var fps by remember { mutableIntStateOf(0) }

    Text("FPS: $fps", modifier = modifier)

    DisposableEffect(Unit) {
        val everyFrameCallback = object : Choreographer.FrameCallback {
            var acc = 0.0
            var latestFrameTime = 0.0

            override fun doFrame(frameTimeNanos: Long) {
                val frameTimeMillis: Double = frameTimeNanos / 1_000_000.0
                val deltaMillis = frameTimeMillis - latestFrameTime
                acc += deltaMillis
                if (acc >= UPDATE_FPS_EVERY_MS) {
                    fps = (1000.0 / deltaMillis).roundToInt()
                    acc = 0.0
                }
                latestFrameTime = frameTimeMillis
                Choreographer.getInstance().postFrameCallback(this) // Enqueue again
            }
        }

        Choreographer.getInstance().postFrameCallback(everyFrameCallback)

        onDispose {
            Choreographer.getInstance().removeFrameCallback(everyFrameCallback)
        }
    }
}

DEMO.md

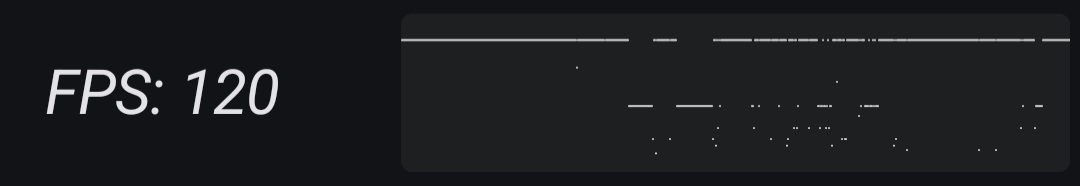

FpsCounterGraph composable:

Use FpsCounter if you don't need the frame rate graph

FpsCounterGraph.kt

package com.fps

private const val UPDATE_FPS_EVERY_MS = 60
private const val GRAPH_Y_AXIS_FPS_LIMIT = 144

@Composable
fun FpsCounterGraph(modifier: Modifier = Modifier) {
    var fps by remember { mutableIntStateOf(0) }
    var updateCount by remember { mutableIntStateOf(0) }

    Row(modifier = modifier.height(IntrinsicSize.Max)) {
        Text(
            modifier = Modifier
                .weight(1 / 3f)
                .align(Alignment.CenterVertically),
            text = "FPS: $fps",
            fontStyle = FontStyle.Italic
        )
        FrameRateGraph(
            modifier = Modifier
                .weight(2 / 3f)
                .fillMaxHeight()
                .padding(4.dp)
                .clip(RoundedCornerShape(4.dp))
                .background(Color.DarkGray.copy(alpha = 0.25f)),
            fps = fps,
            updateCount = updateCount
        )
    }

    DisposableEffect(Unit) {
        val everyFrameCallback = object : Choreographer.FrameCallback {
            var acc = 0.0
            var latestFrameTime = 0.0

            override fun doFrame(frameTimeNanos: Long) {
                val frameTimeMillis: Double = frameTimeNanos / 1_000_000.0
                val deltaMillis = frameTimeMillis - latestFrameTime
                acc += deltaMillis
                if (acc >= UPDATE_FPS_EVERY_MS) {
                    fps = (1000.0 / deltaMillis).roundToInt()
                    updateCount += 1
                    acc = 0.0
                }
                latestFrameTime = frameTimeMillis
                Choreographer.getInstance().postFrameCallback(this) // Enqueue again
            }
        }

        Choreographer.getInstance().postFrameCallback(everyFrameCallback)

        onDispose {
            Choreographer.getInstance().removeFrameCallback(everyFrameCallback)
        }
    }
}

@Composable
private fun FrameRateGraph(fps: Int, updateCount: Int, modifier: Modifier = Modifier) {
    val graphPoints = remember { MutableLongList(initialCapacity = 0) }

    Canvas(modifier) {
        val canvasWidth = drawContext.size.width
        if (graphPoints.capacity == 0)
            graphPoints.ensureCapacity(canvasWidth.toInt())

        var firstPointX = 0f
        if (graphPoints.size == graphPoints.capacity)
            firstPointX = unpackFloat1(graphPoints.removeAt(0))

        val x = updateCount.toFloat()
        val y = size.height - (fps / GRAPH_Y_AXIS_FPS_LIMIT.toFloat() * size.height)
        graphPoints.add(packFloats(x, y))

        translate(left = if (x > canvasWidth) -firstPointX else 0f) {
            graphPoints.forEach {
                drawCircle(Color.LightGray, 1f, Offset(unpackFloat1(it), unpackFloat2(it)))
            }
        }
    }
}
