before_after.md

before

30 meter resolution EO1-ALI Satellite Image

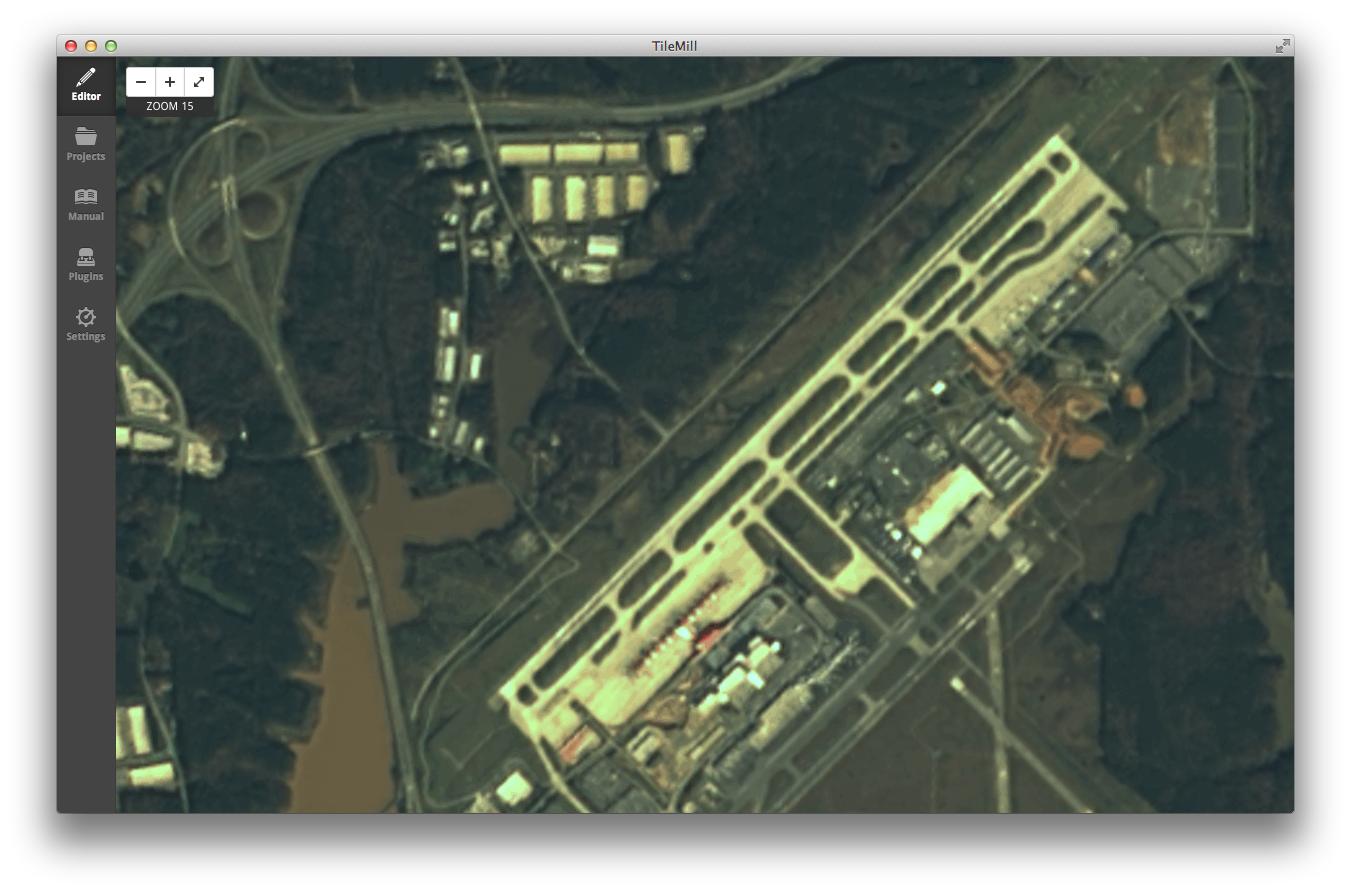

After

10 meter resolution pansharpened EO1-ALI Satellite Image

orfeo-compile.sh

brew install fltk
sudo pip install mercurial

hg clone http://hg.orfeo-toolbox.org/OTB
cd OTB
mkdir build
cmake \
  -DBUILD_APPLICATIONS:BOOL=ON \
  -DCMAKE_BUILD_TYPE:STRING=Release \
  -DCMAKE_C_FLAGS:STRING=-Wall -Wno-uninitialized -Wno-unused-variable -fPIC \
  -DCMAKE_CXX_FLAGS:STRING= -Wall -Wno-deprecated -Wno-uninitialized -Wno-unused-variable -fPIC -Wno-gnu -Wno-overloaded-virtual \
  ../

test_pansharpen.sh

#!/bin/bash
## test pansharpening script using EO1-ALI imagery obtained from USGS Earth Explorer.
## Bands 5, 4, 3 of E01-ALI represent R,G,B respectively, with 30m resolution.
## Band 1 is panchromatic, with 10m resolution.

gdalbuildvrt \
  -separate \
  -q \
  -srcnodata "0 0 0"\
  -vrtnodata "0 0 0"\
  $DIR/rgb.vrt \
$DIR/*B05*.TIF $DIR/*B04*.TIF $DIR/*B03*.TIF && \
otbcli_BundleToPerfectSensor \
  -ram 4096 \
  -inp $DIR/*_B01_*.TIF \
  -inxs $DIR/rgb.vrt \
  -out $DIR/pan-${DIR}.tif uint16 && \
gdal_translate \
   -ot Byte \
   -scale 0 4000 0 255 \
   -a_nodata "0 0 0" \
 $DIR/pan-${DIR}.tif $DIR/pan-${DIR}-scaled.tif && \
gdalwarp \
  -r lanczos \
  -wm 4096 \
  -multi \
  -srcnodata "0 0 0" \
  -dstnodata "0 0 0" \
  -dstalpha \
  -wo OPTIMIZE_SIZE=TRUE \
  -wo UNIFIED_SRC_NODATA=YES \
  -t_srs EPSG:3785 \
  -co TILED=YES\
  -co COMPRESS=LZW\
  $DIR/pan-${DIR}-scaled.tif $DIR/pansharp_${DIR}_3785.tif &&\
gdaladdo \
  -r cubic \
  --config COMPRESS_OVERVIEW LZW \
  $DIR/pansharp_${DIR}_3785.tif $ADDO && \
rm $DIR/pan-${DIR}.tif ${DIR}/pan-${DIR}-scaled.tif
