ImageSharpNormalMap.cs

gistfile1.txt

using System;
using SixLabors.ImageSharp;
using SixLabors.ImageSharp.PixelFormats;
using System.Numerics;

namespace TestNormal
{
    class Program
    {

        public enum EdgeDetectMethod
        {
            Sobel,
            Scharr
        }

        public static Vector3 GetPixelRGB(ref Image<Rgba32> originalImage, int xPos, int yPos)
        {
            xPos = Math.Min(Math.Max(xPos, 0), originalImage.Width - 1);
            yPos = Math.Min(Math.Max(yPos, 0), originalImage.Height - 1);
            var result = originalImage[xPos, yPos].ToVector4();
            return new Vector3(result.X, result.Y, result.Z);
        }

        public static Vector4 GetPixelRGBA(ref Image<Rgba32> originalImage, int xPos, int yPos)
        {
            xPos = Math.Min(Math.Max(xPos, 0), originalImage.Width - 1);
            yPos = Math.Min(Math.Max(yPos, 0), originalImage.Height - 1);
            var result = originalImage[xPos, yPos].ToVector4();
            return new Vector4(result.X, result.Y, result.Z, result.W);
        }

        public static float GetPixelFloat(ref Image<Rgba32> originalImage, int xPos, int yPos)
        {
            Vector3 result = GetPixelRGB(ref originalImage, xPos, yPos);
            return ((result.X / 255.0f) + (result.Y / 255.0f) + (result.Z / 255.0f)) / 3;
        }

        public static Image<Rgba32> NormalMap(Image<Rgba32> originalImage, float bias, bool emboss, EdgeDetectMethod edgeDetectMethod)
        {
            var imageResult = new Image<Rgba32>(originalImage.Width, originalImage.Height);

            const float rIntensity = 0.1f; // can be changed to make more defined although bias can also have similar effect
            const float gIntensity = 0.1f; // can be changed to make more defined although bias can also have similar effect

            float invertR = emboss ? -rIntensity : rIntensity;
            float invertG = emboss ? -gIntensity : gIntensity;

            for (int y = 0; y < originalImage.Height; y++)
            {
                for (int x = 0; x < originalImage.Width; x++)
                {
                    float tl = Math.Abs(GetPixelFloat(ref originalImage, x - 1, y + 1));
                    float l = Math.Abs(GetPixelFloat(ref originalImage, x - 1, y));
                    float bl = Math.Abs(GetPixelFloat(ref originalImage, x - 1, y - 1));
                    float t = Math.Abs(GetPixelFloat(ref originalImage, x, y + 1));
                    float b = Math.Abs(GetPixelFloat(ref originalImage, x, y - 1));
                    float tr = Math.Abs(GetPixelFloat(ref originalImage, x + 1, y + 1));
                    float r = Math.Abs(GetPixelFloat(ref originalImage, x + 1, y));
                    float br = Math.Abs(GetPixelFloat(ref originalImage, x + 1, y - 1));

                    float dx;
                    float dy;

                    if (edgeDetectMethod == EdgeDetectMethod.Sobel)
                    {
                        dx = tl + l * 2.0f + bl - tr - r * 2.0f - br;
                        dy = tl + t * 2.0f + tr - bl - b * 2.0f - br;
                    }
                    else
                    {
                        dx = tl * 3.0f + l * 10.0f + bl * 3.0f - tr * 3.0f - r * 10.0f - br * 3.0f;
                        dy = tl * 3.0f + t * 10.0f + tr * 3.0f - bl * 3.0f - b * 10.0f - br * 3.0f;
                    }

                    var normal = Vector3.Normalize(new Vector3(dx * invertR, dy * invertG, 1.0f - ((bias - 0.01f) / 100.0f)));
                    var result = new Vector4((normal.X * 0.5f) + 0.5f, (normal.Y * 0.5f) + 0.5f, normal.Z, 1.0f);
                    imageResult[x, y] = new Rgba32(result.X, result.Y, result.Z, result.W);
                }
            }

            return imageResult;
        }

        public static Image<Rgba32> EmbossOverlay(Image<Rgba32> originalImage, bool emboss)
        {
            float[] kernel = { +2, 0, 0, 0, -1, 0, 0, 0, -1 };
            Vector2[] offsets = {
                new Vector2(-1, 1),
                new Vector2(0, 1),
                new Vector2(1, 1),
                new Vector2(-1, 0),
                new Vector2(0, 0),
                new Vector2(1, 0),
                new Vector2(-1, -1),
                new Vector2(0, -1),
                new Vector2(1, -1)
            };

            var imageResult = new Image<Rgba32>(originalImage.Width, originalImage.Height);

            for (int y = 0; y < originalImage.Height; y++)
            {
                for (int x = 0; x < originalImage.Width; x++)
                {
                    var sum = new Vector4(0);
                    for (int i = 0; i < 9; i++)
                    {
                        Vector4 temp = GetPixelRGBA(ref originalImage, x + (int)offsets[i].X, y + (int)offsets[i].Y);
                        sum += temp * kernel[i];
                    }

                    var result = new Rgba32(sum.X + 0.5f, sum.Y + 0.5f, sum.Z + 0.5f, 1.0f);

                    float grey = ((result.R + result.G + result.B) / (3 * 255.0f));
                    float level = (grey - 0.5f) * 2.0f;
                    float value1 = emboss ? 0.0f : 1.0f;
                    float value2 = emboss ? 1.0f : 0.0f;
                    if (level > 0)
                    {
                        imageResult[x, y] = new Rgba32(value1, value1, value1, Math.Abs(level));
                    }
                    else
                    {
                        imageResult[x, y] = new Rgba32(value2, value2, value2, Math.Abs(level));
                    }
                }
            }

            return imageResult;
        }

        public static Image<Rgba32> Emboss(Image<Rgba32> originalImage, bool emboss, bool greyscale)
        {
            float[] kernel = { +2, 0, 0, 0, -1, 0, 0, 0, -1 };
            Vector2[] offsets = {
                new Vector2(-1, 1),
                new Vector2(0, 1),
                new Vector2(1, 1),
                new Vector2(-1, 0),
                new Vector2(0, 0),
                new Vector2(1, 0),
                new Vector2(-1, -1),
                new Vector2(0, -1),
                new Vector2(1, -1)
            };

            var imageResult = new Image<Rgba32>(originalImage.Width, originalImage.Height);

            for (int y = 0; y < originalImage.Height; y++)
            {
                for (int x = 0; x < originalImage.Width; x++)
                {
                    var sum = new Vector4(0);
                    for (int i = 0; i < 9; i++)
                    {
                        Vector4 temp = GetPixelRGBA(ref originalImage, x + (int)offsets[i].X, y + (int)offsets[i].Y);
                        sum += temp * kernel[i];
                    }
                    var result = new Rgba32(sum.X + 0.5f, sum.Y + 0.5f, sum.Z + 0.5f, 1.0f);
                    if (greyscale)
                    {
                        byte grey = (byte)((result.R + result.G + result.B) / 3);
                        result = new Rgba32(grey, grey, grey, 255);
                    }
                    if (!emboss)
                    {
                        result = new Rgba32((byte)Math.Abs(255 - result.R), (byte)Math.Abs(255 - result.G), (byte)Math.Abs(255 - result.B), 255);
                    }
                    imageResult[x, y] = result;
                }
            }

            return imageResult;
        }

        //static void Main(string[] args)
        //{
        //    float bias = 50;
        //    bool emboss = true;
        //    using (var image = Image.Load("/Users/ptribe/Desktop/input.png"))
        //    using (Image<Rgba32> imageResult = Process(image, bias, emboss, EdgeDetectMethod.Scharr))
        //    {
        //        imageResult.Save("/Users/ptribe/Desktop/outrput.png");
        //    }
        //}

        static void Main(string[] args)
        {
            float bias = 50;
            bool emboss = true;
            bool greyscale = true;
            using (var image = Image.Load("/Users/ptribe/Desktop/G0001373_Twin_Greenery_-_Shower_Invite/assets/APT_FLT57V_FRT.png"))
            {
                using (Image<Rgba32> imageResult = NormalMap(image, bias, emboss, EdgeDetectMethod.Sobel))
                {
                    imageResult.Save("/Users/ptribe/Desktop/G0001373_Twin_Greenery_-_Shower_Invite/test2.png");
                }
                using (Image<Rgba32> imageResult2 = Emboss(image, emboss, greyscale))
                {
                    imageResult2.Save("/Users/ptribe/Desktop/G0001373_Twin_Greenery_-_Shower_Invite/test3.png");
                }
                using (Image<Rgba32> imageResult2 = EmbossOverlay(image, emboss))
                {
                    imageResult2.Save("/Users/ptribe/Desktop/G0001373_Twin_Greenery_-_Shower_Invite/test4.png");
                }
            }
        }
    }
}

Example Input

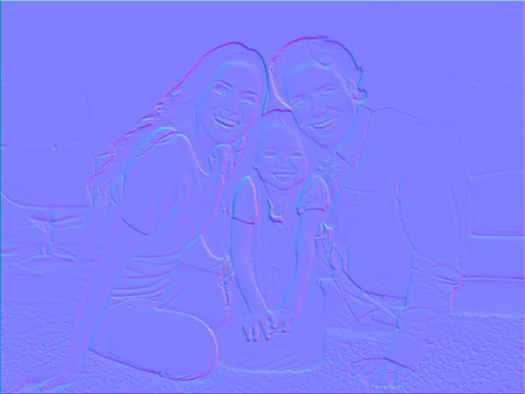

Example output normal map

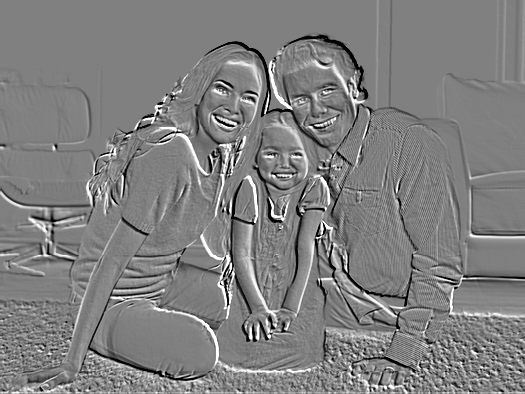

Example output emboss

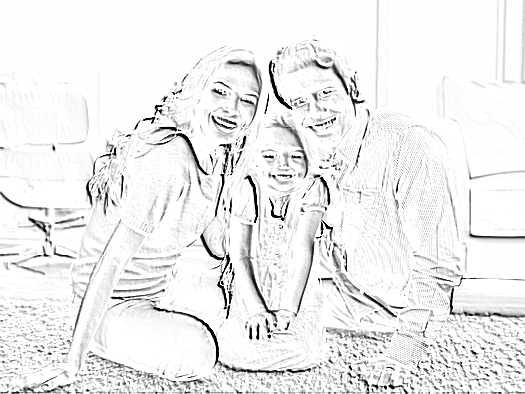

Example output emboss overlay
